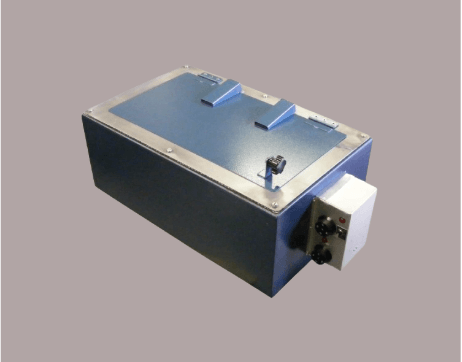

Hot Wax Dip Tanks

Our larger sized range of hot wax dip dip tanks have been designed for commercial and industrial melting of waxes, glues and plastics etc. for coating, casting, protecting.Our hot wax dip tanks are available in a variety of sizes - select your preferred dimensions below and get in touch for custom pricing.

Type	Size (LxWxD) MM	Wattage	Capacity (L)	Weight (KG)
DT 0.2	76x76x38	175	0.24	7
DT 0.5	203x51x51	120	0.5	8
DT 0.9	381x51x51	400	0.9	9
DT 1	406x51x51	220	1.0	10
DT 1.3	381x76x76	500	1.3	10
DT 1.4	406x51x76	500	1.4	10
DT 2.8	253x152x102	600	2.8	14
DT 3	305x102x102	600	3.0	15
DT 4.6	457x152x76	1100	5.0	16
DT 5	356x152x102	800	5.0	17
DT 5.7	305x203x102	1000	5.7	18
DT 6	406x152x102	1000	6.0	18
DT 6.4	305x152x152	1000	6.4	20
DT 7	508x127x127	1000	7.0	22
DT 7.4	356x152x152	1250	7.4	23
DT 8	305x203x152	1250	8.0	24
DT 12	610x152x152	1500	12.0	24
DT 13	356x203x203	1500	13.0	25
DT 14	305x254x203	1500	14.0	26
DT 14.3	305x231x231	1500	14.0	27
DT 15	406x203x203	1500	15.0	28
DT 16	559x152x203	1500	16.0	28
DT 16.9	610x152x203	1500	17.0	28
DT 17	356x152x356	1800	18.0	28
DT 17.7	305x254x254	1800	17.0	28
DT 17.9	381x229x229	1800	18.0	29
DT 18	508x203x203	1800	18.0	29
DT 19	914x152x152	2300	19.0	32
DT19.1	457x229x229	2000	18.0	32
DT 20	660x229x152	2100	20.0	34
DT 21	457x229x229	2300	21.0	35
DT 22	1067x152x152	2400	22.0	36
DT 23	381x229x305	2150	23.0	38
DT 28	610x203x254	2400	28.0	40
DT 28.3	864x254x203	2200	24.0	36
DT 28.5	457x229x305	2200	24.0	35
DT 29	1508x254x254	2400	29.0	40
DT 30	356x304x305	2400	30.0	36
DT 31	508x254x254	2500	31.0	44
DT 31.8	457x254x305	3000	31.0	36
DT 32	813x305x152	2700	32.0	48
DT 33	610x305x203	3000	33.0	48
DT 34	610x254x254	2600	34.0	42
DT 35	610x356x203	3000	35.0	41
DT 37	1067x152x254	3000	37.0	43
DT38	500X500X150	3000	38.0	40
DT 40	475x305x305	3000	40.0	40
DT 41	1118x203x203	3000	41.0	41
DT 42	508x305x305	3300	42.0	52
DT 47	457x381x305	3600	47.0	54
DT 48	600x300x300	3600	51.0	54
DT 51	610x305x305	4000	51.0	58
DT 53	1270x305x152	4200	53.0	60
DT 57	457x457x305	4200	57.0	61
DT 60	610x305x356	4300	60.0	62
DT 61	406x406x406	4400	61.0	62
DT 63	610x305x381	4400	63.0	63
DT 63.7	457x305x508	4500	64.0	64
DT 68	813x305x305	4600	68.0	67
DT 70	457x406x406	4700	70.0	56
DT 75	914x305x305	4800	75.0	75
DT 79	762x305x381	4800	79.0	78
DT 80	610x381x381	4800	80.0	80
DT 85	610x610x254	4800	85.0	85
DT 89	1067x405x305	5200	95.0	89
DT 96	762x305x457	5600	96.0	90
DT 97	762x457x305	5600	97.0	90
DT 100	914x254x254	6300	100.0	91
DT 110	914x254x254	6600	110.0	93
DT 114	610x457x457	7000	114.0	98
DT 125	1067x356x356	7500	125.0	100
DT 130	1524x305x305	8000	130.0	110
DT 136	610x610x406	8200	136.0	115
DT 140	914x229x711	8500	140.0	120
DT 147	610x406x660	9000	147.0	124
DT 152	610x610x457	9600	152.0	125
DT 153	610x610x457	9900	153.0	125
DT 160	1143x508x305	10000	160.0	130
DT 184	98x508x203	12000	184.0	132
DT 185	1219x356x457	12600	185.0	135
DT 230	1219x457x457	15000	230.0	140
DT 300	914x610x914	18000	300.0	145
DT 306	1219x610x457	18500	306.0	148
DT 340	1829x457x457	19700	340.0	148
DT 344	914x914x457	20000	350.0	155
DT 350	1524x508x508	21000	350.0	155
DT 398	762x762x762	23000	398.0	158
DT 500	914x762x762	25000	500.0	160
DT 510	1524x610x610	26000	510.0	160
DT 612	1219x914x610	30000	612.0	160
DT 640	1219x762x762	32000	640.0	160
DT 758	1067x864x914	45000	758.0	165
DT 1700	2438x914x914	65000	1700.0	175

See additional information below for thermostat range options.
